ODM Auto Optical Inspection Machine
PRODUCT FEATURE
- ACV16045 fastener inspection machine is an ODM design model which can fit with 2~8 CCD at customers demand for sorting special Fastener and other products
- Inspection items: for special ODM application
- Sorting range/ criteria: At customers demand, ODM design
Inspection Criteria

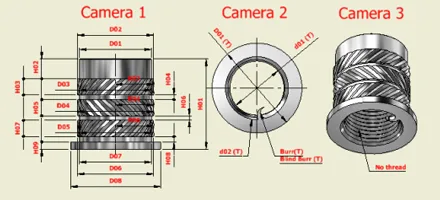

fastener parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread / thread I.D. / thread E.D./ neck length / shank vertical / screw length / first thread / drunk thread / head crack / plating / insert nut thread / burr / dimension / etc.
Specification
| Series No. | ACV-16045 |
| Appling Component | Special ODM application |
| Diameter of Component | ODM customer made |
| Length of Component | At customer demand |
| Head Width | At customer demand |
| No. of CCD | 2~8 CCD |
| Vision System | Highly magnified CCD camera / light source sets |
| Software | Accuvision Pro-V II version 2.5 |
| Supply and Output | Feeding bowl / linear track / sorting bins (Good/NG) |
| Speed | Depend on the feeding system and ODM components |
| Power | AC 220 – 240V / 50Hz |
| Mainframe | Industrial computer, MITSUBISHI servo motor, Industrial CCD, Telecentric lens |
| Machine Spec. | 1065mmL×860mmW×1,855mmH |
